最近需要做一個圍棋識別的項目，首先要將棋盤位置定位出來，效果圖如下：

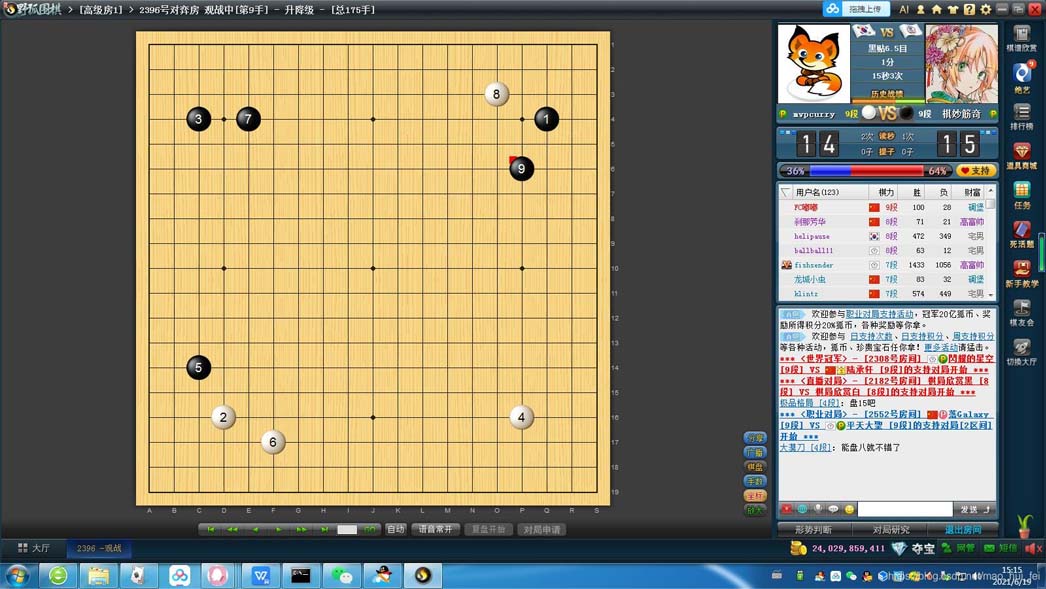

原圖

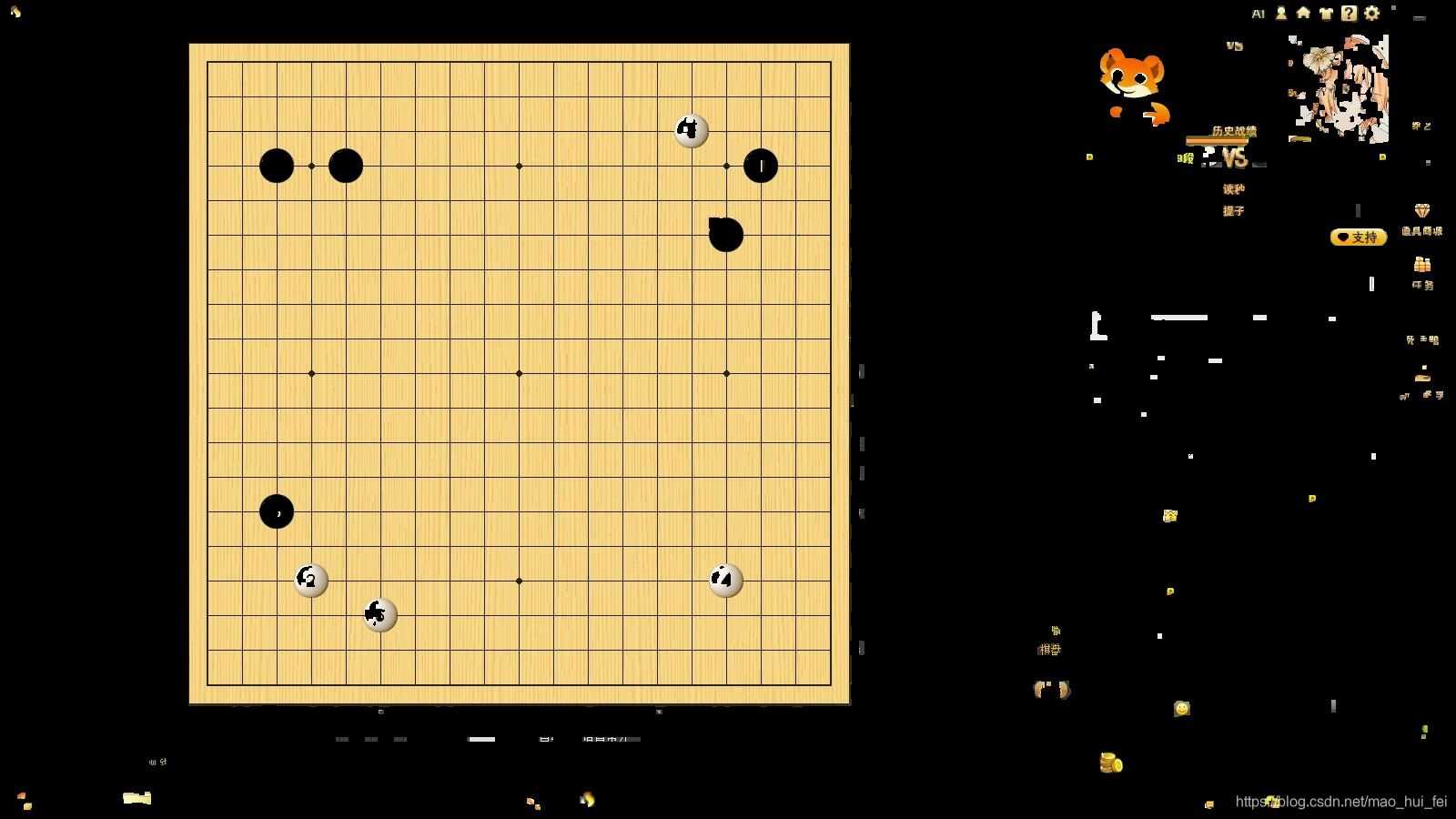

中間處理效果

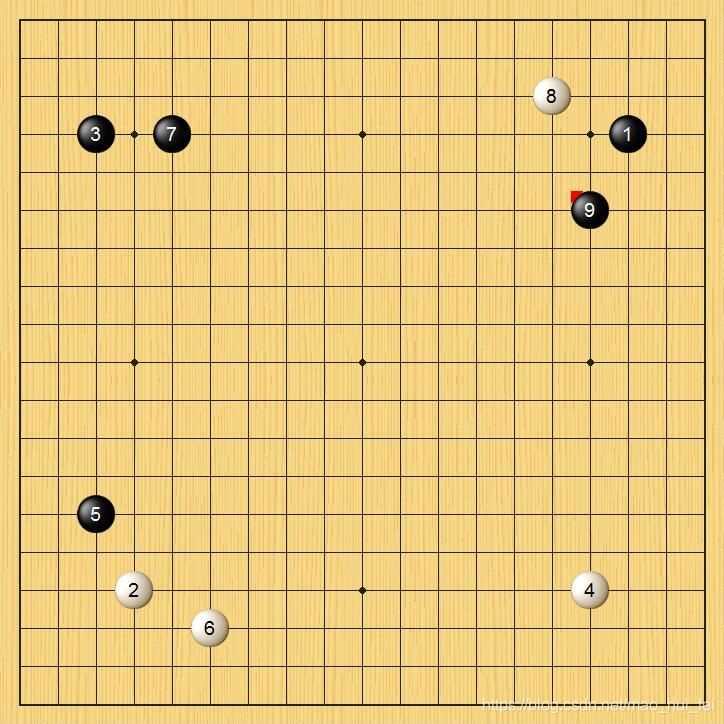

最終結果

我們利用python opencv的相關函數進行操作實現，根據棋盤顏色的特征，尋找到相關特征，將棋盤區域摳出來。最好從原始圖像中將棋盤位置截取出來。

from PIL import ImageGrabimport numpy as npimport cv2from glob import globimglist = sorted(glob('screen/*.jpg'))for i in imglist:# while 1: img = cv2.imread(i) image = img.copy() w,h,c = img.shape img2 = np.zeros((w,h,c), np.uint8) img3 = np.zeros((w,h,c), np.uint8) # img = ImageGrab.grab() #bbox specifies specific region (bbox= x,y,width,height *starts top-left)hsv=cv2.cvtColor(img,cv2.COLOR_BGR2HSV) lower = np.array([10,0,0]) upper = np.array([40,255,255]) mask = cv2.inRange(hsv,lower,upper) erodeim = cv2.erode(mask,None,iterations=2) # 腐蝕 dilateim = cv2.dilate(erodeim,None,iterations=2) img = cv2.bitwise_and(img,img,mask=dilateim) frame = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY) ret, dst = cv2.threshold(frame, 100, 255, cv2.THRESH_BINARY) contours,hierarchy = cv2.findContours(dst, cv2.RETR_LIST, cv2.CHAIN_APPROX_SIMPLE) cv2.imshow('0',img) i = 0 maxarea = 0 nextarea = 0 maxint = 0 for c in contours:if cv2.contourArea(c)>maxarea: maxarea = cv2.contourArea(c) maxint = ii+=1 #多邊形擬合 epsilon = 0.02*cv2.arcLength(contours[maxint],True) if epsilon<1:continue#多邊形擬合 approx = cv2.approxPolyDP(contours[maxint],epsilon,True) [[x1,y1]] = approx[0] [[x2,y2]] = approx[2] checkerboard = image[y1:y2,x1:x2] cv2.imshow('1',checkerboard) cv2.waitKey(1000)cv2.destroyAllWindows()

帶保存圖像

from PIL import ImageGrabimport numpy as npimport cv2from glob import globimport osimglist = sorted(glob('screen/*.jpg'))a=0for i in imglist:# while 1: a=a+1 img = cv2.imread(i) image = img.copy() w,h,c = img.shape img2 = np.zeros((w,h,c), np.uint8) img3 = np.zeros((w,h,c), np.uint8) # img = ImageGrab.grab() #bbox specifies specific region (bbox= x,y,width,height *starts top-left)hsv=cv2.cvtColor(img,cv2.COLOR_BGR2HSV) lower = np.array([10,0,0]) upper = np.array([40,255,255]) mask = cv2.inRange(hsv,lower,upper) erodeim = cv2.erode(mask,None,iterations=2) # 腐蝕 dilateim = cv2.dilate(erodeim,None,iterations=2) img = cv2.bitwise_and(img,img,mask=dilateim) frame = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY) ret, dst = cv2.threshold(frame, 100, 255, cv2.THRESH_BINARY) contours,hierarchy = cv2.findContours(dst, cv2.RETR_LIST, cv2.CHAIN_APPROX_SIMPLE) # 保存圖片的地址 img_file_1 = './temp' # 確認上述地址是否存在 if not os.path.exists(img_file_1):os.mkdir(img_file_1) cv2.imshow('0',img) cv2.imwrite(img_file_1 + '/' + ’temp_%d.jpg’%a, img) i = 0 maxarea = 0 nextarea = 0 maxint = 0 for c in contours:if cv2.contourArea(c)>maxarea: maxarea = cv2.contourArea(c) maxint = ii+=1 #多邊形擬合 epsilon = 0.02*cv2.arcLength(contours[maxint],True) if epsilon<1:continue#多邊形擬合 approx = cv2.approxPolyDP(contours[maxint],epsilon,True) [[x1,y1]] = approx[0] [[x2,y2]] = approx[2] checkerboard = image[y1:y2,x1:x2] cv2.imshow('1',checkerboard) cv2.waitKey(1000) # 保存圖片的地址 img_file_2 = './checkerboard' # 確認上述地址是否存在 if not os.path.exists(img_file_2):os.mkdir(img_file_2) cv2.imwrite(img_file_2 + '/' + ’checkerboard_%d.jpg’%a, checkerboard)cv2.destroyAllWindows()

到此這篇關于python識別圍棋定位棋盤位置的文章就介紹到這了,更多相關python 圍棋定位棋盤位置內容請搜索好吧啦網以前的文章或繼續瀏覽下面的相關文章希望大家以后多多支持好吧啦網！
