學習SpringBoot+Mybatis實現的登錄注冊功能的Demo，實現這個Demo在網上也參考了資料和代碼，本文是本人在實現Demo后的個人總結，以便理清思路。

1.環境 jdk8 ： “1.8.0_281” Maven： 3.6.3 Idea：2020.2 Mysql：5.6.40 Navicat：10.1.72.步驟2.1 創建一個SpringBoot項目

選擇依賴如下：

Web下的Spring Web。Template Engines下的Thymeleaf。SQL下的JDBC API、Spring Data JDBC、MySQL Driver。

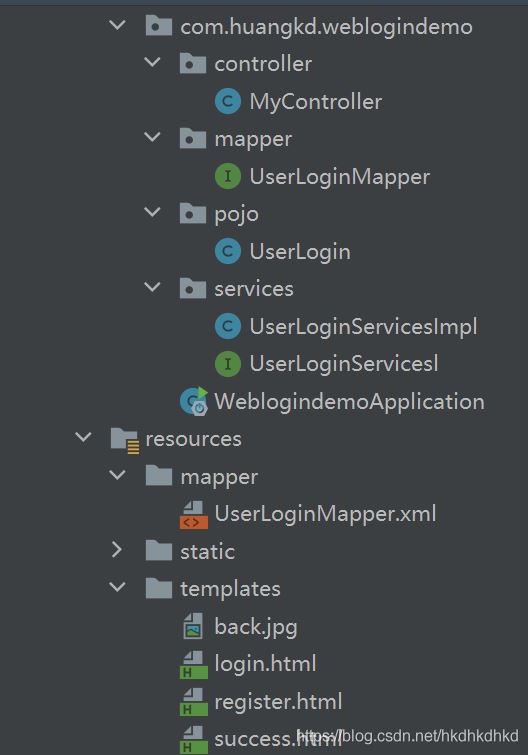

項目的結構：

2.2 pom依賴配置

<?xml version='1.0' encoding='UTF-8'?><project xmlns='http://maven.apache.org/POM/4.0.0' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd'> <modelVersion>4.0.0</modelVersion> <parent> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-parent</artifactId> <version>2.4.3</version> <relativePath/> <!-- lookup parent from repository --> </parent> <groupId>com.haungkd</groupId> <artifactId>weblogindemo</artifactId> <version>0.0.1-SNAPSHOT</version> <name>weblogindemo</name> <description>Demo project for Spring Boot</description> <properties> <java.version>1.8</java.version> </properties> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-jpa</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-jdbc</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-thymeleaf</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <scope>runtime</scope> </dependency> <!-- mybatis--> <dependency> <groupId>org.mybatis.spring.boot</groupId> <artifactId>mybatis-spring-boot-starter</artifactId> <version>2.1.3</version> </dependency> <!--lombok--> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>1.18.12</version> <scope>provided</scope> </dependency> <!--druid連接池--> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid</artifactId> <version>1.2.3</version> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-test</artifactId> <scope>test</scope> <exclusions> <exclusion> <groupId>org.junit.vintage</groupId> <artifactId>junit-vintage-engine</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>org.xmlunit</groupId> <artifactId>xmlunit-core</artifactId> </dependency> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.4.6</version> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </build></project>2.3 設置配置文件

yml文件配置：

其中url中的數據庫記得對應，我的庫為login

spring: datasource: driver-class-name: com.mysql.cj.jdbc.Driver url: jdbc:mysql://localhost:3306/login?serverTimezone=GMT%2B8&useSSL=true username: root #數據庫 password: 123456 #密碼

properties文件配置：

#端口號server.port=8088#druid數據庫連接池type=com.alibaba.druid.pool.DruidDataSource#清除緩存spring.thymeleaf.cache=false#配置mappermybatis.mapper-locations=classpath:mapper/*.xml2.4 在pojo包下創建實體類UserLogin

package com.huangkd.weblogindemo.pojo;import javax.persistence.Table;import lombok.AllArgsConstructor;import lombok.Data;import lombok.NoArgsConstructor;@Data // get/set 方法@AllArgsConstructor//有參構造器@NoArgsConstructor//無參構造器@Table(name = 'userlogin')public class UserLogin { private String username; private String password; public String getUsername() { return username; }}2.5創建數據庫和數據表

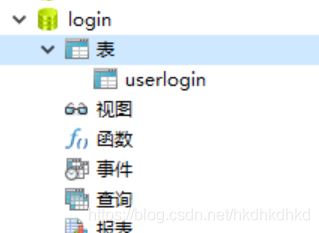

我創建login庫，創建userlogin表，字段為username和password

2.6 連接數據庫

在IDEA右邊選擇：

Database——> ——> Data Source——> Mysql

如果測試不通：出現如下：

Server returns invalid timezone. Need to set ‘serverTimezone’ property.

是數據庫時區問題

解決方法：

打開開最右側 Advanced，找到 serverTimezone，在右側value處填寫 GMT，保存即可

2.7Mapper層（Dao）：數據庫持久層

在mapper包下建UserLoginMapper接口

package com.huangkd.weblogindemo.mapper;import com.huangkd.weblogindemo.pojo.UserLogin;import org.apache.ibatis.annotations.Mapper;import org.springframework.stereotype.Repository;import java.util.List;@Mapper@Repositorypublic interface UserLoginMapper { //定義增刪改查方法 //查詢所有 public List<UserLogin> queryAll(); //添加數據 public int add(UserLogin userLogin); //根據用戶名查詢 public UserLogin queryByUsername(String username);}

在resources下建UserLoginMapper.xml文件

<?xml version='1.0' encoding='UTF-8'?><!DOCTYPE mapper PUBLIC '-//mybatis.org//DTD Mapper 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-mapper.dtd'><mapper namespace='com.huangkd.weblogindemo.mapper.UserLoginMapper'> <select resultType='com.huangkd.weblogindemo.pojo.UserLogin'> select * from userlogin </select> <insert parameterType='com.huangkd.weblogindemo.pojo.UserLogin'> insert into userlogin values (#{username},#{password}) </insert> <select resultType='com.huangkd.weblogindemo.pojo.UserLogin'> select * from userlogin where username=#{username} </select></mapper>2.8 Service層：業務邏輯層

在services下新建接口UserLoginServicesI和類UserLoginServicesImpl

UserLoginServicesI接口：

import com.huangkd.weblogindemo.pojo.UserLogin;import java.util.List;public interface UserLoginServicesl { //查詢所有 public List<UserLogin> queryAll(); //添加數據 public int add(UserLogin userLogin); //根據用戶名查詢 public UserLogin queryByUsername(String username);}

UserLoginServicesImpl類：

package com.huangkd.weblogindemo.services;import com.huangkd.weblogindemo.mapper.UserLoginMapper;import com.huangkd.weblogindemo.pojo.UserLogin;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Service;import java.util.List;@Servicepublic class UserLoginServicesImpl implements UserLoginServicesl { @Autowired //Service層調用dao層/mapper層 一般在service層中創建一個dao/mapper層對象 //用對象調用對應的增刪改查方法 UserLoginMapper userLoginMapper; @Override public List<UserLogin> queryAll() { return userLoginMapper.queryAll(); } @Override public int add(UserLogin userLogin) { return userLoginMapper.add(userLogin); } @Override public UserLogin queryByUsername(String username) { return userLoginMapper.queryByUsername(username); }}2.9 Controller層：控制層

在controller包下創建MyController類：

package com.huangkd.weblogindemo.controller;import com.huangkd.weblogindemo.pojo.UserLogin;import com.huangkd.weblogindemo.services.UserLoginServicesImpl;import org.springframework.beans.factory.annotation.Autowired;import org.springframework.stereotype.Controller;import org.springframework.ui.Model;import org.springframework.web.bind.annotation.RequestMapping;@Controllerpublic class MyController { //controller層調用service層 //創建一個service層對象 @Autowired UserLoginServicesImpl userLoginServices; //登錄 @RequestMapping('/toLogin') public String toLogin() { return 'login'; } @RequestMapping('/loginSuccess') public String loginSuccess(Model model, UserLogin userLogin) { //查詢用戶名是否存在 UserLogin userLogin1 = userLoginServices.queryByUsername(userLogin.getUsername()); if (userLogin1 != null) { //如果用戶名存在 if (userLogin1.getPassword().equals(userLogin.getPassword())) { System.out.println(userLogin1.toString()); return 'success'; } else { model.addAttribute('data', '密碼不正確'); return 'login'; } } else { //用戶名不存在，直接返回到登錄頁面 model.addAttribute('data', '該用戶不存在，請先注冊'); return 'login'; } } //注冊 @RequestMapping('/toRegister') public String toRegister() { return 'register'; } @RequestMapping('/toRegisterSuccess') public String toRegisterSuccess(Model model,UserLogin userLogin) { //添加一條記錄到數據庫中 int add = userLoginServices.add(userLogin); System.out.println('插入數據成功'); model.addAttribute('data','注冊成功，請登錄'); return 'login'; }}2.10 前端頁面

login.html：登錄頁面

<!DOCTYPE html><html lang='en' xmlns:th='http://www.thymeleaf.org'><head> <meta charset='UTF-8'> <title>login</title></head><body background='back.jpg'><div align='center'> <br><br><h2>登錄界面</h2><br><br> <span th:text='${data}' style='text-color:red;font-size: 10px'></span> <form method='get' action='/loginSuccess'> 用戶名:<input type='text' name='username' placeholder='請輸入用戶名' required/><br><br> 密碼：<input type='text' name='password' placeholder='請輸入密碼' required/><br><br> <input type='submit' value='登錄'> </form> <br> <form method='get' action='/toRegister'> <input type='submit' value='注冊'> </form></div></body></html>

regsister.html：注冊頁面

<!DOCTYPE html><html lang='en' xmlns:th='http://www.thymeleaf.org'><head> <meta charset='UTF-8'> <title>register</title></head><body background='back.jpg' ><div align='center'> <br><br><h1>注冊界面</h1><br><br> <form method='get' action='/toRegisterSuccess'> 用戶名:<input type='text' name='username' placeholder='請輸入用戶名' required/><br><br> 密碼：<input type='text' name='password' placeholder='請輸入密碼' required/><br><br> 確認密碼：<input type='text' name='password2' placeholder='請輸入密碼' required/><br><br> <input type='submit' value='注冊'> </form></div></body></html>

success.html：成功頁面

成功頁面我復制本人csdn首頁源代碼

3.測試

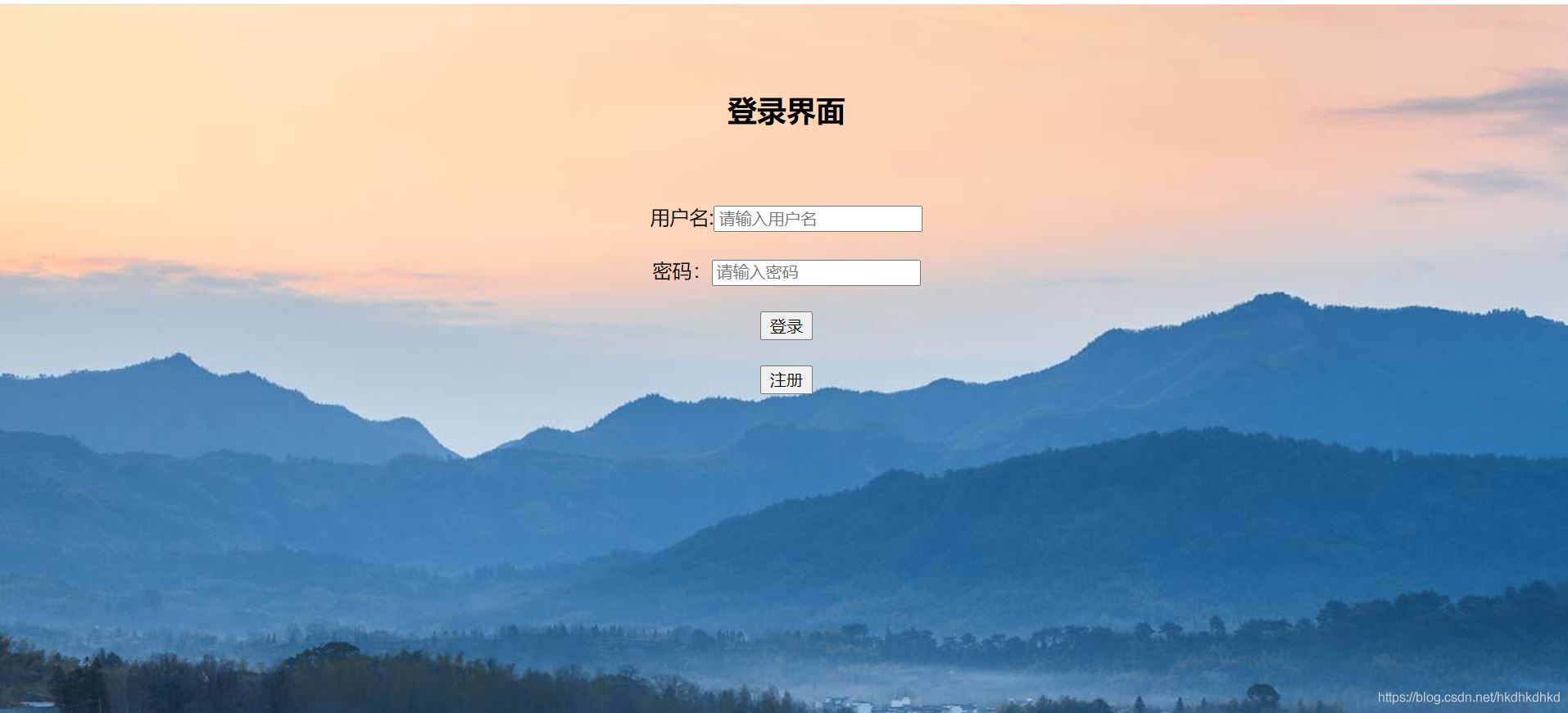

登錄：

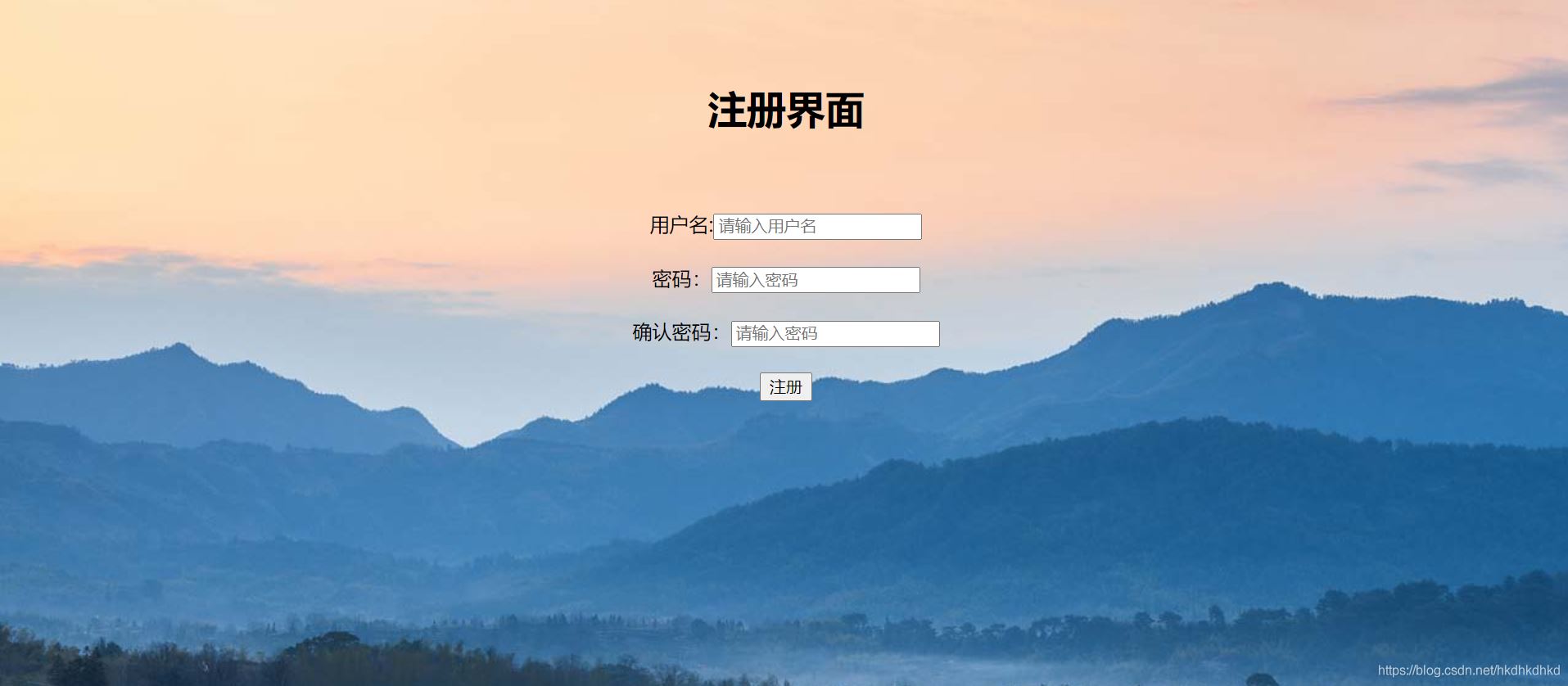

注冊：

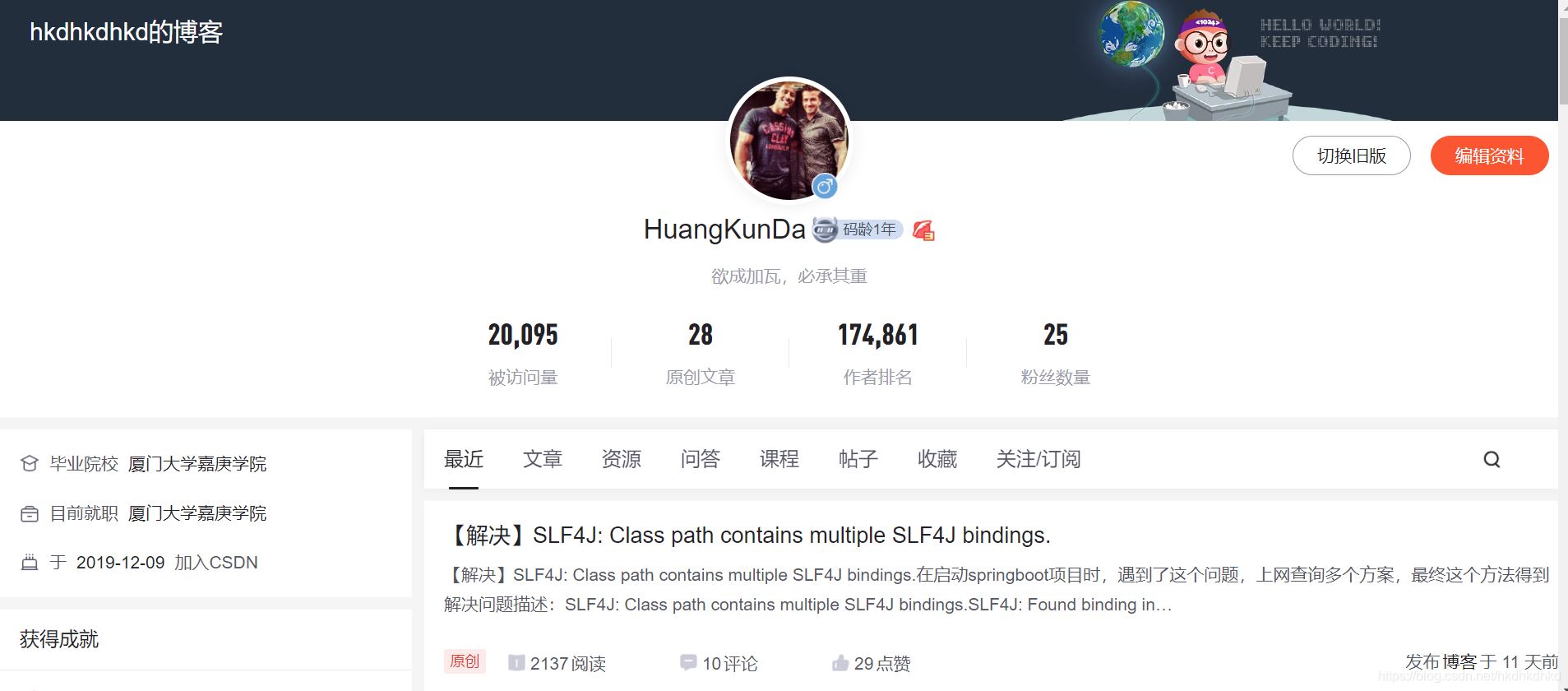

成功：
