SpringBoot 集成 activiti

基礎環境搭建

添加依賴

<dependency> <groupId>org.activiti</groupId> <artifactId>activiti-spring-boot-starter-basic</artifactId> <version>6.0.0</version> </dependency>

添加配置文件

server: tomcat: uri-encoding: UTF-8 threads: # 最大工作線程數，默認200 max: 1000 # 最小工作空閑線程數，默認10。（適當增大一些，以便應對突然增長的訪問量） min-spare: 30 port: 8082spring: datasource: driver-class-name: com.mysql.cj.jdbc.Driver url: jdbc:mysql://127.0.0.1:3306/activiti6-demo?characterEncoding=utf8&useSSL=false username: root password: 123456 activiti: # 建表規則 # false 默認值。在啟動時會對比數據庫中保存的版本，如果沒有表或版本不匹配則拋出異常。生產環境常用 # true 對activiti所有表進行更新操作，不存在則自動創建。開發常用 # create_drop 在啟動時創建，在關閉時刪除（必須手動關閉引擎，才能刪除）。單元測試常用 # drop_create 在啟動時刪除原來的舊表，然后在創建新表（不需要手動關閉引擎） database-schema-update: true # 啟動的時候是否自動部署流程 check-process-definitions: false # 歷史數據 # none 不保存任何的歷史數據，因此，在流程執行過程中，這是最高效的 # activity 級別高于none，保存流程實例與流程行為，其他數據不保存 # audit 除activity級別會保存的數據外，還會保存全部的流程任務及其屬性。audit為history的默認值 # full 保存歷史數據的最高級別，除了會保存audit級別的數據外，還會保存其他全部流程相關的細節數據，包括一些流程參數等 history-level: audit # 不生成歷史表 activiti6默認啟用,activiti7默認關閉 db-history-used: true

現在運行項目報錯

java.lang.IllegalArgumentException: Could not find class [org.springframework.boot.autoconfigure.security.SecurityAutoConfiguration]at org.springframework.util.ClassUtils.resolveClassName(ClassUtils.java:334) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.annotation.TypeMappedAnnotation.adapt(TypeMappedAnnotation.java:446) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.annotation.TypeMappedAnnotation.getValue(TypeMappedAnnotation.java:369) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.annotation.TypeMappedAnnotation.asMap(TypeMappedAnnotation.java:284) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.annotation.AbstractMergedAnnotation.asAnnotationAttributes(AbstractMergedAnnotation.java:193) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.core.type.AnnotatedTypeMetadata.getAnnotationAttributes(AnnotatedTypeMetadata.java:106) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.AnnotationConfigUtils.attributesFor(AnnotationConfigUtils.java:285) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.AnnotationBeanNameGenerator.determineBeanNameFromAnnotation(AnnotationBeanNameGenerator.java:102) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.AnnotationBeanNameGenerator.generateBeanName(AnnotationBeanNameGenerator.java:81) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassBeanDefinitionReader.registerBeanDefinitionForImportedConfigurationClass(ConfigurationClassBeanDefinitionReader.java:160) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassBeanDefinitionReader.loadBeanDefinitionsForConfigurationClass(ConfigurationClassBeanDefinitionReader.java:141) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassBeanDefinitionReader.loadBeanDefinitions(ConfigurationClassBeanDefinitionReader.java:120) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassPostProcessor.processConfigBeanDefinitions(ConfigurationClassPostProcessor.java:331) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.annotation.ConfigurationClassPostProcessor.postProcessBeanDefinitionRegistry(ConfigurationClassPostProcessor.java:236) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.support.PostProcessorRegistrationDelegate.invokeBeanDefinitionRegistryPostProcessors(PostProcessorRegistrationDelegate.java:280) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.support.PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(PostProcessorRegistrationDelegate.java:96) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.support.AbstractApplicationContext.invokeBeanFactoryPostProcessors(AbstractApplicationContext.java:707) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.context.support.AbstractApplicationContext.refresh(AbstractApplicationContext.java:533) ~[spring-context-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.boot.web.servlet.context.ServletWebServerApplicationContext.refresh(ServletWebServerApplicationContext.java:143) ~[spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:758) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.refresh(SpringApplication.java:750) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.refreshContext(SpringApplication.java:397) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.run(SpringApplication.java:315) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.run(SpringApplication.java:1237) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at org.springframework.boot.SpringApplication.run(SpringApplication.java:1226) [spring-boot-2.3.4.RELEASE.jar:2.3.4.RELEASE]at com.test.activitydemo.ActivityDemoApplication.main(ActivityDemoApplication.java:11) [classes/:na]Caused by: java.lang.ClassNotFoundException: org.springframework.boot.autoconfigure.security.SecurityAutoConfigurationat java.net.URLClassLoader.findClass(URLClassLoader.java:382) ~[na:1.8.0_191]at java.lang.ClassLoader.loadClass(ClassLoader.java:424) ~[na:1.8.0_191]at sun.misc.Launcher$AppClassLoader.loadClass(Launcher.java:349) ~[na:1.8.0_191]at java.lang.ClassLoader.loadClass(ClassLoader.java:357) ~[na:1.8.0_191]at java.lang.Class.forName0(Native Method) ~[na:1.8.0_191]at java.lang.Class.forName(Class.java:348) ~[na:1.8.0_191]at org.springframework.util.ClassUtils.forName(ClassUtils.java:284) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]at org.springframework.util.ClassUtils.resolveClassName(ClassUtils.java:324) ~[spring-core-5.2.9.RELEASE.jar:5.2.9.RELEASE]... 25 common frames omitted

在啟動類中排除安全配置就可以成功運行

@SpringBootApplication( exclude = SecurityAutoConfiguration.class)public class ActivityDemoApplication { public static void main(String[] args) { SpringApplication.run(ActivityDemoApplication.class, args); }}

idea 流程圖插件

鏈接: https://pan.baidu.com/s/1UFSV1lfhVjc3eEdFCpTtxQ 密碼: gw6s

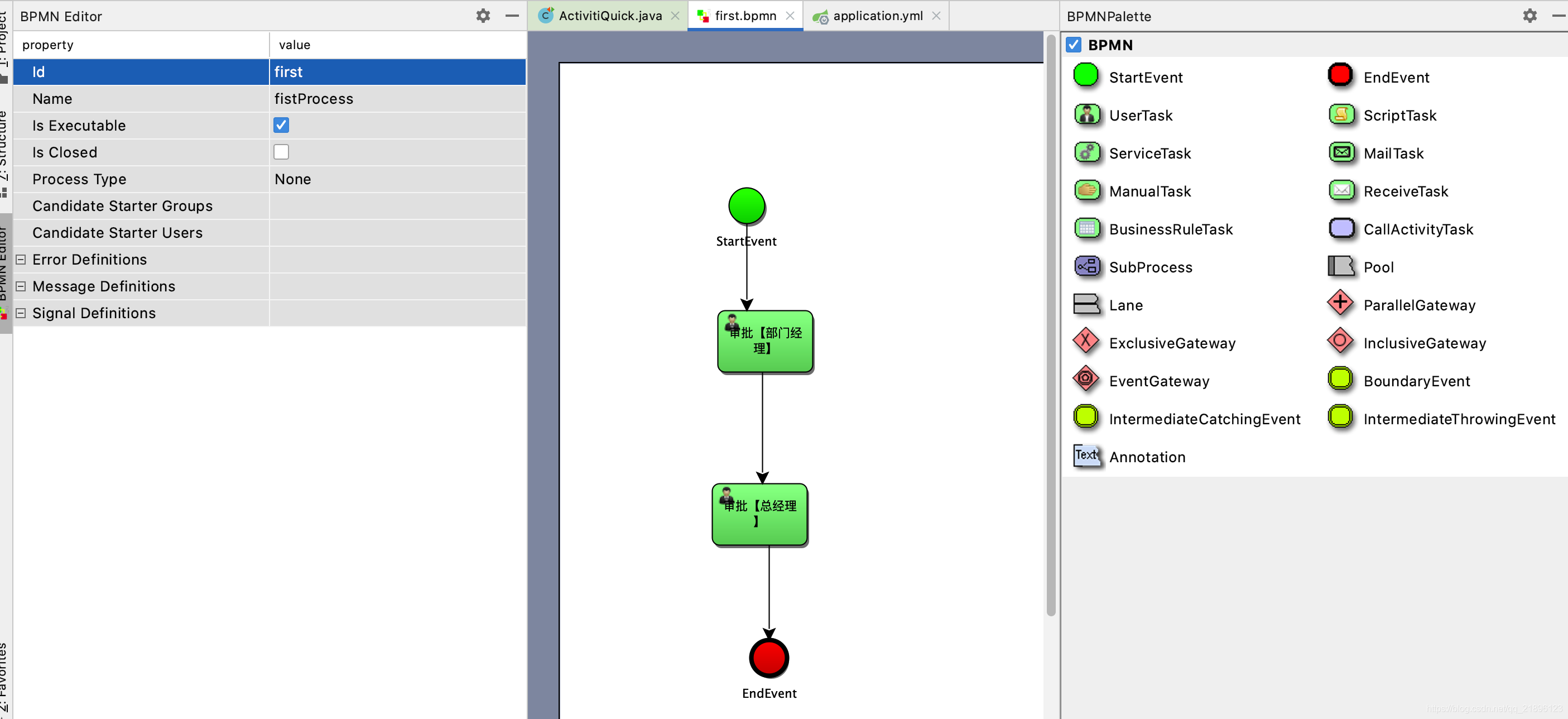

簡單的請假流程 畫流程圖

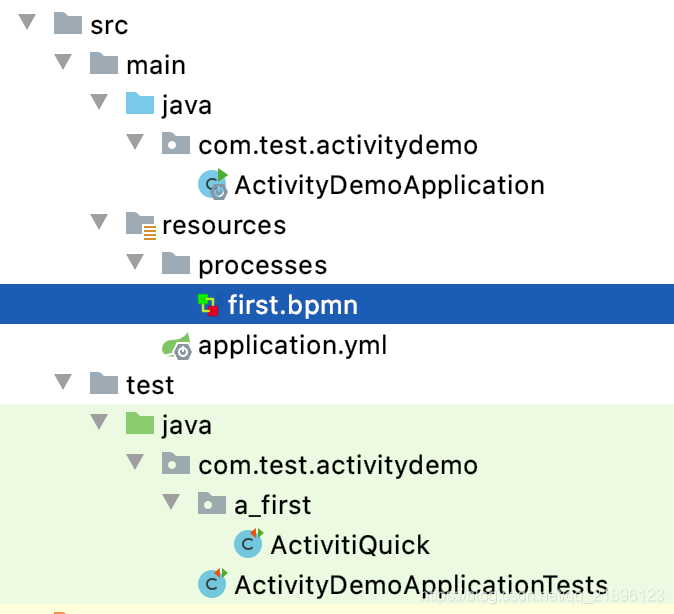

請假

package com.test.activitydemo.a_first;import com.test.activitydemo.ActivityDemoApplicationTests;import org.activiti.engine.HistoryService;import org.activiti.engine.RepositoryService;import org.activiti.engine.RuntimeService;import org.activiti.engine.TaskService;import org.activiti.engine.history.HistoricProcessInstance;import org.activiti.engine.history.HistoricTaskInstance;import org.activiti.engine.repository.Deployment;import org.activiti.engine.runtime.ProcessInstance;import org.activiti.engine.task.Task;import org.junit.jupiter.api.Test;import org.springframework.util.CollectionUtils;import javax.annotation.Resource;import java.util.List;/** * <p> * * </p> * * @author jisen wang * @Date 2020/10/7 */public class ActivitiQuick extends ActivityDemoApplicationTests { @Resource private RepositoryService repositoryService; @Resource private RuntimeService runtimeService; @Resource private TaskService taskService; @Resource private HistoryService historyService; private final String bpmnNameAndKey = 'first'; /*見表，默認啟動的時候就會建好表格*/ @Test public void createTable() { } /*第一步：--永遠是畫制流程圖---部署流程圖*/ @Test public void deploy() { Deployment deploy = repositoryService.createDeployment().addClasspathResource('processes/first.bpmn')//.addClasspathResource('processes/first.png').key(bpmnNameAndKey).name(bpmnNameAndKey + 'name').category('HR').deploy(); System.out.println('流程部署IDt' + deploy.getId()); System.out.println('流程keyIDt' + deploy.getKey()); System.out.println('流程名稱IDt' + deploy.getName()); System.out.println('流程分類IDt' + deploy.getCategory()); } /*第二步：啟動一個流程實例，相當于----有人請假一次*/ @Test public void start() { ProcessInstance processInstance = runtimeService.startProcessInstanceByKey(bpmnNameAndKey); System.out.println('流程實例IDt' + processInstance.getId()); System.out.println('流程定義IDt' + processInstance.getProcessDefinitionId()); System.out.println('流程定義keyt' + processInstance.getProcessDefinitionKey()); } /*第三步:查找個人待辦任務列表*/ @Test public void findMyTask() { String assignee = '李四'; List<Task> list = taskService.createTaskQuery().taskAssignee(assignee).list(); if (!CollectionUtils.isEmpty(list)) { for (Task task : list) {System.out.println('任務IDt' + task.getId());System.out.println('任務名稱t' + task.getName());System.out.println('任務執行人t' + task.getAssignee()); } } } /*第四步：執行任務*/ @Test public void complte() { String taskId = '5002'; taskService.complete(taskId); System.out.println('任務執行完成'); } /*第五步：查看歷史流程實例*/ @Test public void findhistProcessInstance() { List<HistoricProcessInstance> list = historyService.createHistoricProcessInstanceQuery().processDefinitionKey(bpmnNameAndKey).list(); if (!CollectionUtils.isEmpty(list)) { for (HistoricProcessInstance historicProcessInstance : list) {System.out.println('業務系統keyt' + historicProcessInstance.getBusinessKey());System.out.println('部署對象IDt' + historicProcessInstance.getDeploymentId());System.out.println('執行時長t' + historicProcessInstance.getDurationInMillis());System.out.println('流程定義IDt' + historicProcessInstance.getProcessDefinitionId());System.out.println('流程定義的keyt' + historicProcessInstance.getProcessDefinitionKey());System.out.println('流程定義名稱t' + historicProcessInstance.getProcessDefinitionName()); } } } /*第六步：查看歷史任務*/ @Test public void findHisTask(){ List<HistoricTaskInstance> list = historyService.createHistoricTaskInstanceQuery().list(); if (!CollectionUtils.isEmpty(list)) { for (HistoricTaskInstance historicTaskInstance : list) {System.out.println('任務執行人t' + historicTaskInstance.getAssignee());System.out.println('任務名稱t' + historicTaskInstance.getName());System.out.println('任務IDt' + historicTaskInstance.getId());System.out.println('流程實例IDt' + historicTaskInstance.getProcessInstanceId());System.out.println('*****************'); } } }}
